High-Performance German Honey Extraction Line – Complete Automated System, Brand New
For sale: complete high-performance honey extraction line, manufactured in Germany and delivered directly from the manufacturer. The equipment is brand new, never used, never installed, and supplied as a fully integrated system for professional honey processing.
The line is designed for commercial beekeepers and honey processors seeking high efficiency, automation, and reduced manual labor.

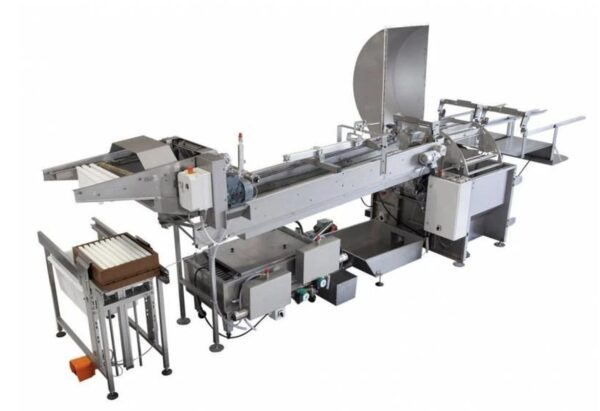

Extraction Line – Main Components
Pneumatic D-Boxer (new design) with frame lifting function
Decapping machine with chain feed for up to 12 honey frames, including: Hot water unit, Speed control, Double knife system
Chain conveyor feeding frames into the centrifuge
Pneumatic frame loading system
Vertical centrifuge with heated bottom
Movable outlet rack, divided into two sections (manual version)
Collecting tank with floor heating, large impeller pump (DN 50), and capacitive level control
Direct wax melter, including two wax troughs
Central electrical control cabinet with Siemens plain text display
Roller conveyor for empty supers, 5 m, Ø76 mm rollers, with brake
Key Technical Advantages

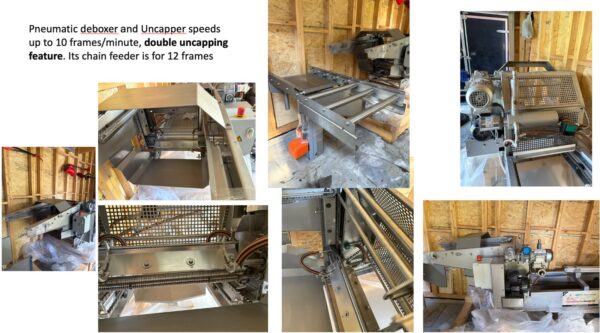

Double Knife Decapping System
The decapper is equipped with a double knife system, which is rare in Canada and the U.S. The first knife opens the cappings, while the second knife automatically removes remaining uncut areas. This largely eliminates manual post-decapping with forks and significantly reduces labor requirements.
Vertical Centrifuge Performance
The vertical centrifuge processes up to 42 frames per load. Due to its very fast extraction cycle, the effective hourly throughput is higher than standard vertical systems, making it suitable for continuous commercial operation.

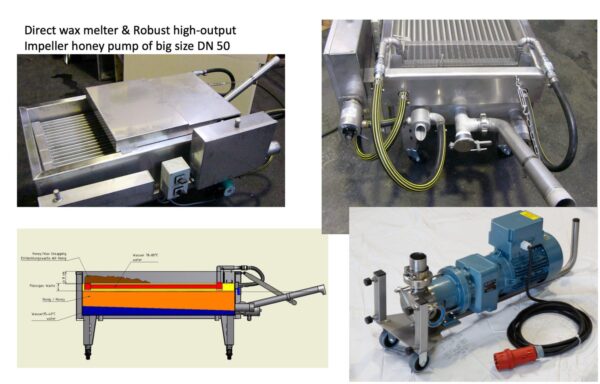

Direct Wax Melter
Wax is separated and melted immediately during extraction and cast directly into molds, forming solid wax blocks in real time. This eliminates wax presses or wax centrifuges, which often clog and still require remelting. The process is gentle, and the honey is not exposed to critical temperatures.
Utilities & Compatibility
Power supply: 3×230 V / PE
Compressed air: 6–8 bar, minimum 50 L/min
Designed for Langstroth size frames
Operational Advantage
The line is designed to minimize manual intervention throughout the extraction process. Automation of decapping, extraction, and wax handling significantly reduces labor dependency, improves process consistency, and lowers operational stress during peak harvest periods.
Condition, Location & Sale
Brand new, unused, never commissioned
Located in Montreal, Quebec. Pickup from Montreal required (buyer arranges transport)
Reason for sale: closure of honey processing operation. Private sale, not a dealer resale.
This extraction line represents advanced German engineering, combining automation, high throughput, reduced labor, and gentle honey handling.
Serious inquiries only. Additional photos and technical documentation available upon request.
